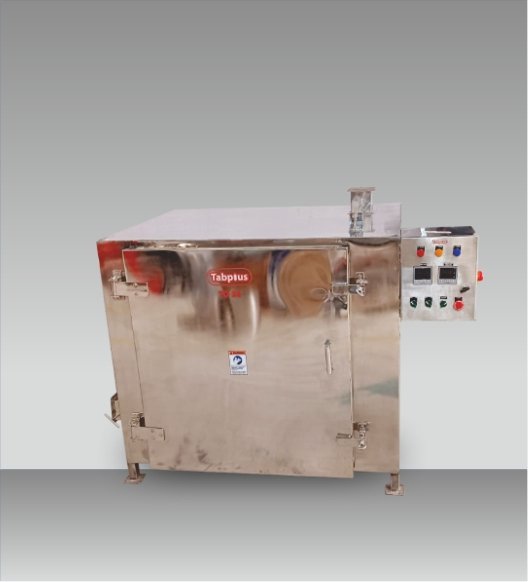

Tray Dryer

Design Is cGMP - Current Good Manufacturing Practices Compliance
All Contact Parts Are Manufactured from AISI 316
Energy Efficient, Robust & Rigid Construction
Highly Effective Uniform Air Re-circulating System By Low Speed Fan
Inlet Air Filter And Damper At Inlet And Exhaust Air Damper For Air Flow Controls
Controls Panel With Digital Temperature Controller And Process Timer Controller
Mobile Trolleys Are Provided Which Are Used To Load And Unload
Models Up To 500-1000 Kgs / Batch Sizes Tray Dryers Available On Request

Model	TD 12	TD 24	TD 48	TD 96
Loading capacity	12 Trays	24 Trays	48 Trays	96 Trays
External Dimension [mm]	1370X530X940	1370X940X940	1980X1020X1880	3320X1900X1880
Internal Dimension [mm]	840X430X840	840X860X840	1020X930X1830	2800X1800X1830
No of Doors	One	One	One	Two
No of Blowers	One	Two	Two	Two
No of motors/ HP 3 Phase / 415V	1/0.5 HP	1/0.5 HP	1/1.0 HP	2/1.0 HP
Electrical Heating Load (kW) for 100° C/ 200° C/300° C	3/6/9	6/9/12	9/15/18	15/21/27
Insulation in mm 100°C/200°C/300°C	50/75/75	50/75/75	50/75/75	50/75/75
No of Trolleys	Rack System	Rack System	One	Two
Tray Size	812X406X31	812X406X31	812X406X31	812X406X31
Trolley Dimension	Fixed Racks	Fixed Racks	840X960X1780	840X960X1780
