The Maximum Output Is Subject To The Material, Tablet / Punch Size and The Compression Force.
We Reserve Rights of Alteration Because of Technical Improvements.

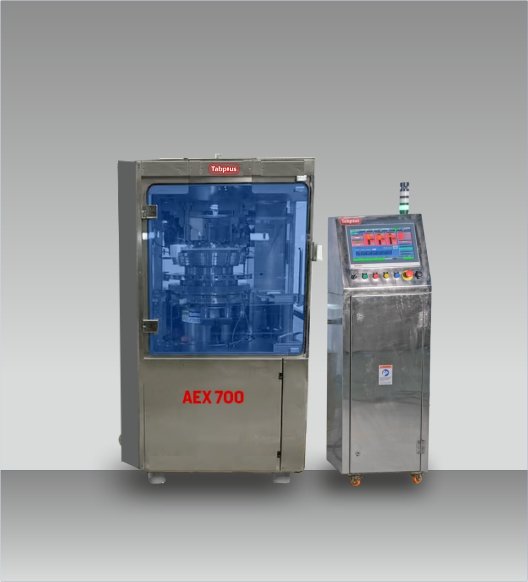

AEX 700 is a Double-Sided Premium Segment AI Based Compression System for Higher Output Tablet Production.
Machine is Offered in Three Variants Along with Interchangeable Turret Option.
i.e. AEX 700-45 / AEX 700-55 / AEX 700-65
| MODEL | NXG 700-45 | NXG 700-55 | NXG 700-65 |
|---|---|---|---|
| Number Of Punch Positions | 45 | 55 | 65 |
| Tooling | D | B | BB |
| Punch Type | EU / TSM | ||
| Punch Shaft Diameter [mm] | 25.4 | 19 | 19 |
| Die Height [mm] | 23.81 | 22.22 | 22.22 |
| Die Diameter [mm] | 38.1 | 30.16 | 24 |
| Punch Length [mm] | 133.6 | 133.6 | 133.6 |
| Maximum Filling Depth [mm] | 20 | 17 | 17 |
| Maximum Tablet Diameter [mm] | 24 | 16 | 13 |
| Tablet Thickness [mm] | 1 to 8 mm | ||
| Feeder Type | Gravity Feeder | Force Feeder | |
| SINGLE-LAYER SETUP | |||
| Max. Die Table Rotation Speed [RPM] | 100 | ||
| Upper Punch Insertion [mm] | 2 to 6 | ||
| Maximum Pre Compression Force [kN] | 100 | ||
| Maximum Main Compression Force [kN] | 100 | 65 | 65 |
| Maximum Output Capacity [Tablet / Hour] | 5,40,000 | 6,60,000 | 7,80,000 |
| BI-LAYER SETUP | |||
| Max. Die Table Rotation Speed [RPM] | 45 | ||
| Upper Punch Insertion [mm] | 4 to 8 | ||
| Maximum Pre Compression Force [kN] | 100 | ||
| Maximum Main Compression Force [kN] | 100 | 65 | 65 |
| Maximum Output Capacity [Tablet / Hour] | 1,21,800 | 1,48,500 | 1,75,500 |
| MACHINE SPECIFICATION / REQUIREMENTS | |||
| Electrical Requirements | Main Motor | Force Feeder Motor | |
| 15.0 HP / 12.50 kW | 0.25 HP / 0.18 kW | ||
| Compressed Air Requirements | 6 Bar | ||
| Machine Dimensions & Weight | LENGTH 1600 X WIDTH 1600 X HEIGHT 2150 & 7850 KG | ||
